- Socket: LGA 1700 – supports 12th/13th/14th Gen Intel Core. Pentium Gold & Celeron CPUs
- Chipset: Intel Z790
- Memory: 4× DDR5 DIMM. up to 7000 MHz+ (OC). max capacity 128 GB. dual-channel. XMP 3.0
- Power Design: 14+1+1 Duet Rail VRM with 55 A DrMOS. dual 8‑pin CPU power connectors
- Expansion Slots: 1× PCIe 5.0 ×16. 1× PCIe 4.0 ×16. 2× PCIe 3.0 ×1
- Storage: 4× M.2 PCIe 4.0 (supports RAID). 6× SATA‑600 (supports RAID 0/1/10/5)
- Cooling: Extended heatsink. M.2 Shield Frozr. MOSFET & choke thermal pads
- Network: Intel 2.5 Gb Ethernet. Intel Wi‑Fi 6E & Bluetooth 5.2/5.3

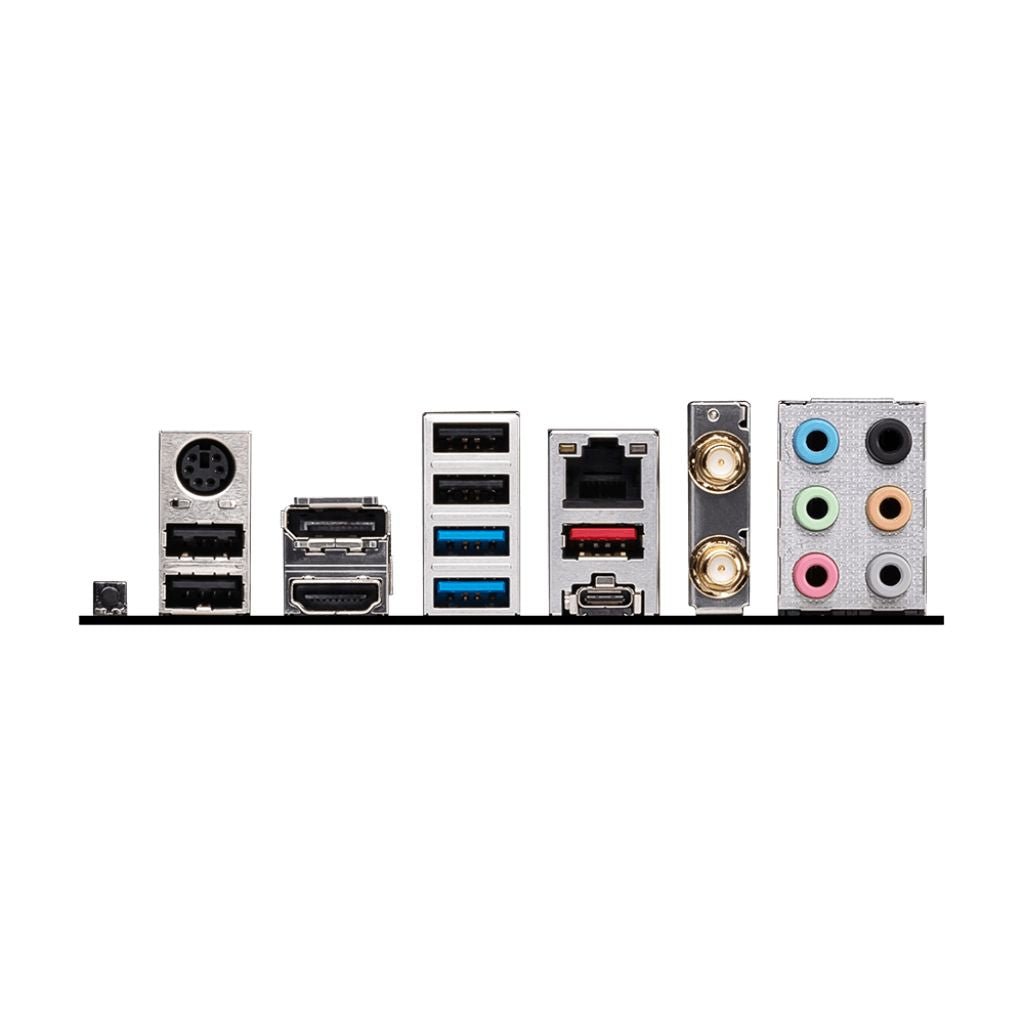

- Rear I/O: 1× HDMI 2.1. 1× DisplayPort 1.4. multiple USB including USB‑C Gen 2×2. USB 3.2 Gen 2/1. USB 2.0. plus PS/2
- Audio: Realtek ALC897 high-definition 8‑channel
- BIOS: MSI ClickBIOS 5 with Debug LED & double ESD protection
- PCB: 6‑layer. 2 oz copper with MSI Core Boost & Steel Armor reinforced slots
- Form Factor: ATX. dimensions ~30.48 × 24.38 cm
- Accessories: 2× SATA cables. 3× M.2 mounting clips. I/O shield. Wi‑Fi antenna
