描述

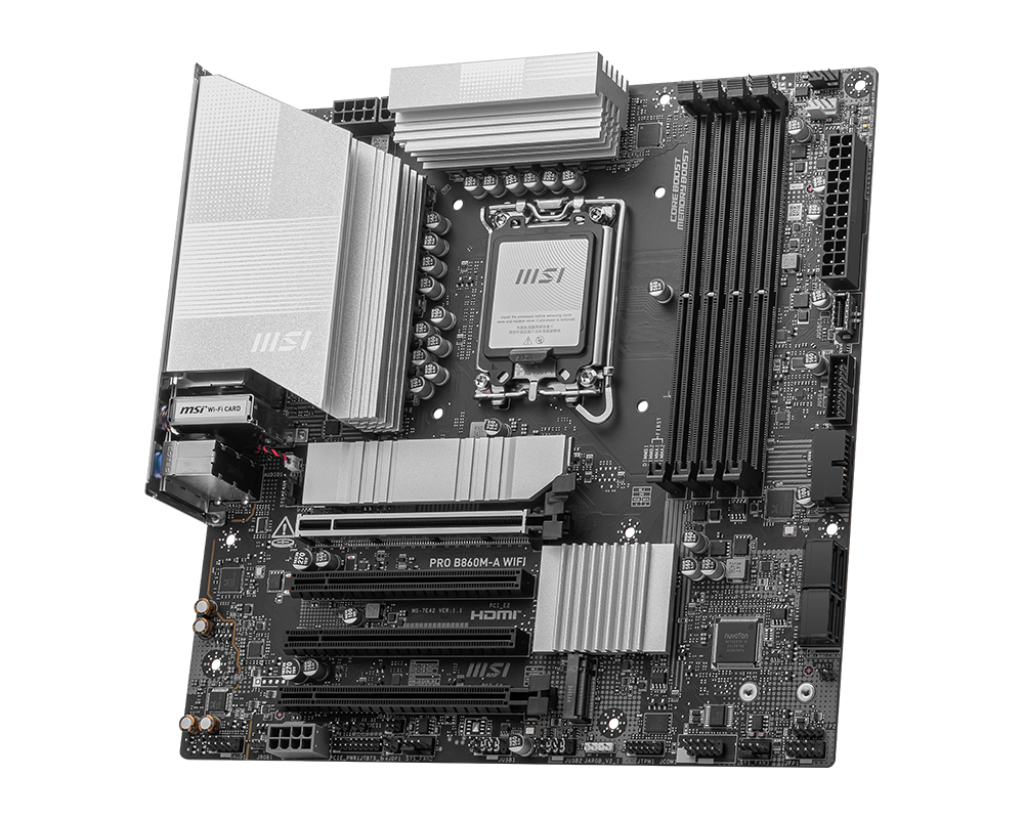

- Chipset & Form Factor: mATX motherboard with Intel® B860 chipset (244 × 244 mm)
- CPU Support: LGA 1851 socket supports Intel® Core™ Ultra (2nd Gen) processors
- Memory: 4 × DDR5 DIMM slots. up to 256 GB. supports DDR5‑8600+ MT/s (OC)
- Expansion Slots: 1 × PCIe 5.0 ×16. 1 × PCIe 4.0 ×16 (×4 mode). 2 × PCIe 4.0 ×1
- Storage: 1 × M.2 Gen5 ×4 (128 Gbps). 1 × M.2 Gen4 ×4. 1 × M.2 Gen4 ×2. 4 × SATA 6 Gb/s ports

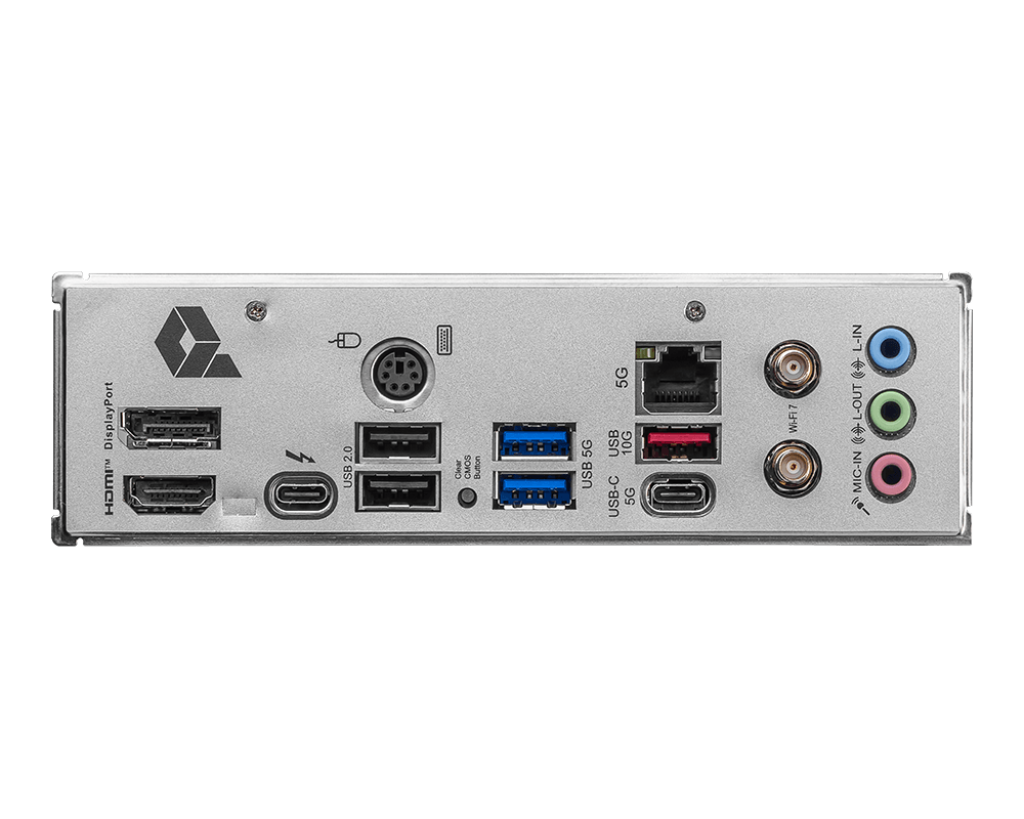

- Rear I/O Ports: 1 × Thunderbolt 4 USB-C (40 Gb/s). 1 × DisplayPort 1.4. 1 × HDMI 2.1 (4K@60 Hz). 1 × PS/2. 2 × USB 2.0. 1 × USB 3.2 Gen2 10 Gb/s Type-A. 1 × USB 3.2 Gen1 5 Gb/s Type-C. 2 × USB 3.2 Gen1 5 Gb/s Type-A
- Networking: Realtek® 5 Gb Ethernet + Intel® Wi‑Fi 7 (up to 5.8 Gbps. 320 MHz) with Bluetooth 5.4
- Audio: Realtek® ALC897 7.1-channel HD audio codec
- Power Design: 12-phase Duet Rail VRM with P‑PAK. dual 8+4-pin CPU power connectors. and extended PWM heatsink
- Cooling Features: Extended heatsinks. MOSFET thermal pads. EZ M.2 Shield Frozr II. EZ PCIe Clip II
- DIY Friendly: Pre-installed I/O shield. EZ Antenna. tool-free PCIe and M.2 clips
- OS Support: Windows 10/11 (64-bit)
- Package Contents: Motherboard. I/O shield. SATA cables. M.2 screws. Wi‑Fi antenna
