描述
- Socket: LGA 1700 – supports Intel 12th/13th/14th Gen Core. Pentium Gold & Celeron CPUs
- Chipset: Intel B760
- Memory: 4× DDR5 DIMM. up to 5333 MHz OC. max capacity 128 GB. dual-channel. Intel XMP
- Power Design: 12+1+1 Duet‑Rail VRM with P‑PAK MOSFETs. 8‑pin + 4‑pin CPU power connectors
- Expansion Slots: 1× PCIe 4.0 ×16 (Steel Armor). 1× PCIe 4.0 ×16 (×4 mode). 1× PCIe 3.0 ×1
- Storage: 2× M.2 PCIe 4.0 ×4 slots (one with Shield Frozr). 4× SATA III (RAID 0/1/5/10)
- Cooling: Extended VRM heatsink. MOSFET & choke pads. M.2 Shield Frozr. 6‑layer 2 oz copper PCB
- Network: Realtek 2.5 GbE LAN; Intel Wi‑Fi 6E + Bluetooth 5.3 (dual‑antenna included)

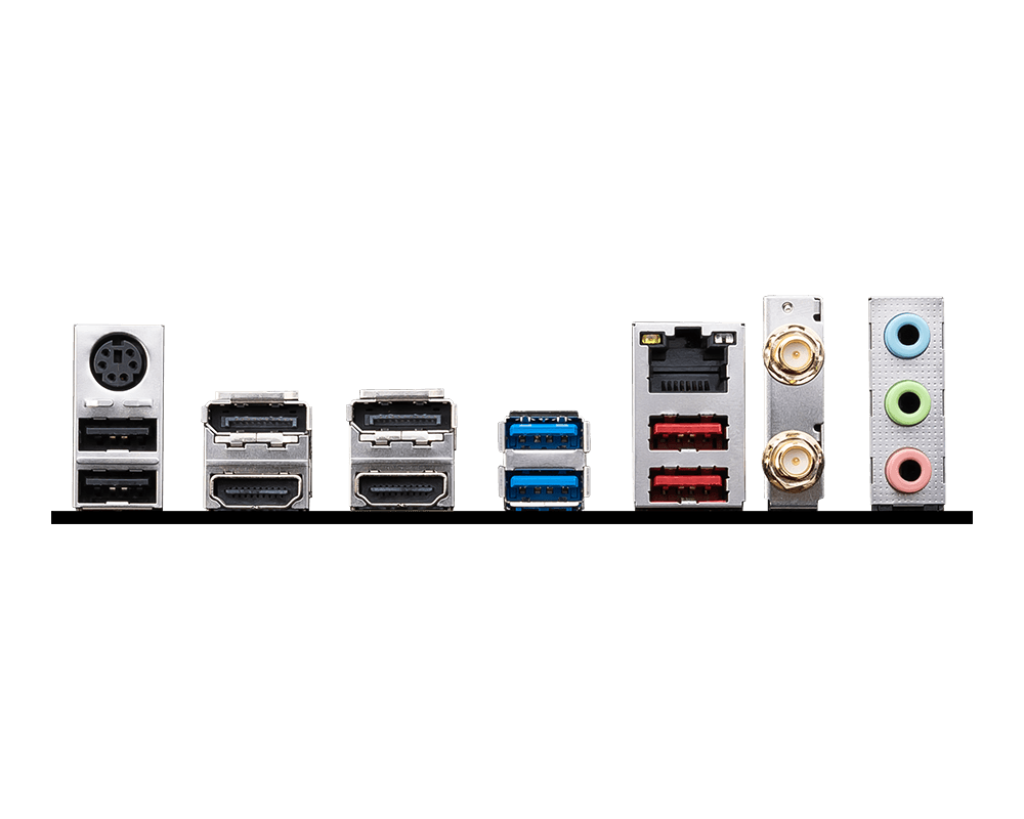

- Rear I/O: 2× HDMI 2.1. 2× DisplayPort 1.4. 2× USB 3.2 Gen 2. 2× USB 3.2 Gen 1. 2× USB 2.0. PS/2 combo. 2× Wi‑Fi antenna
- Audio: Realtek ALC897 7.1‑channel HD with Audio Boost
- BIOS & Software: MSI ClickBIOS 5. EZ Debug LED. Core Boost. Memory Boost. MSI Center. Mystic Light. Frozr AI Cooling
- Form Factor: micro‑ATX (243.8 × 243.8 mm)
- Dimensions: 9.6″ × 9.6″
- Accessories: 2× SATA cables. 2× M.2 screws/standoffs. I/O shield. Wi‑Fi antenna
