描述

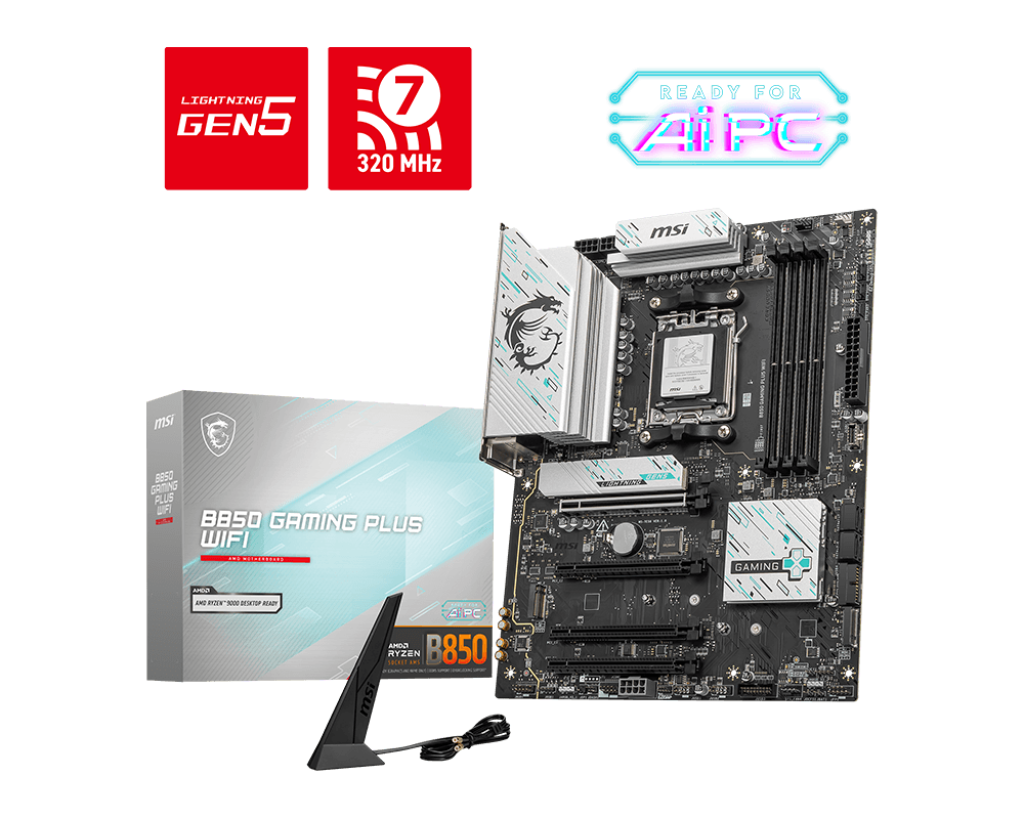

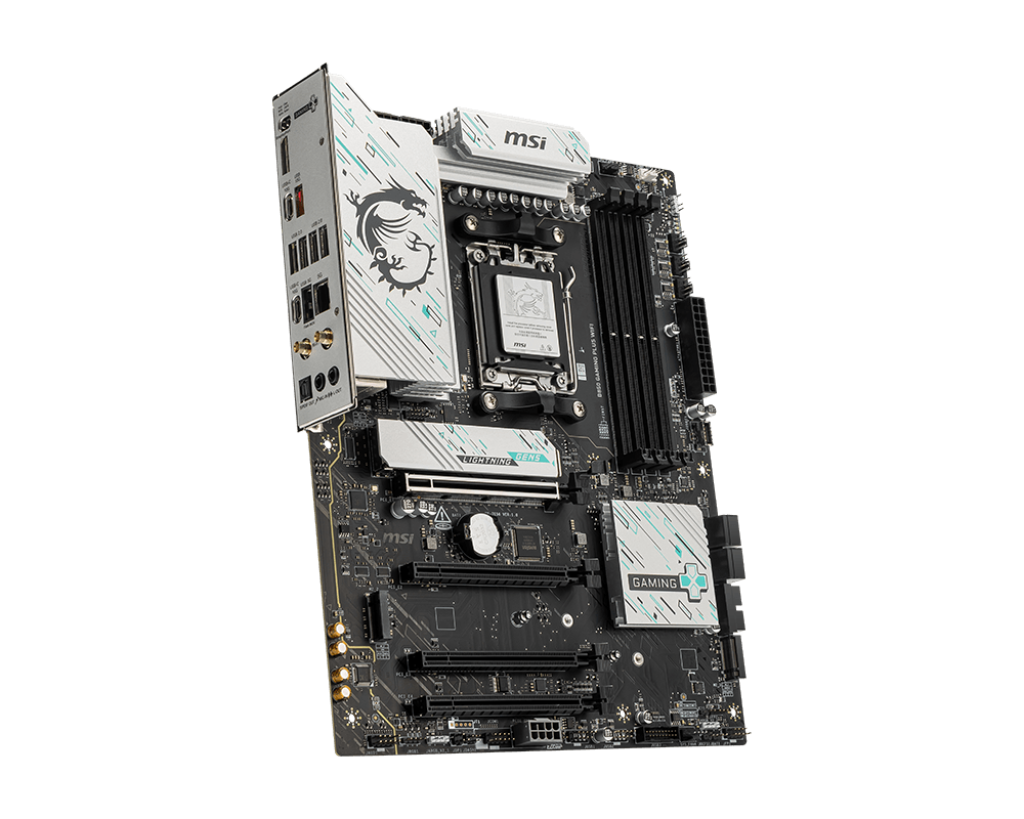

- Form Factor & Chipset: ATX. Socket AM5. AMD B850 chipset; supports Ryzen™ 7000/8000/9000 CPUs
- Memory: 4× DDR5 UDIMM. up to 256 GB; supports DDR5‑8200 OC+ / 5600 JEDEC
- Expansion Slots:
- 1× PCIe 5.0 x16 (CPU)
- 1× PCIe 4.0 x16 (chipset)
- 1× PCIe 4.0 x4 (chipset)
- Storage:
- 1× M.2 Gen5 x4 (128 Gbps. PCIe 5.0)
- 1× M.2 Gen4 x4 (64 Gbps)
- 1× M.2 Gen4 x2 (32 Gbps)
- 4× SATA 6 Gb/s
- RAID 0/1 support (NVMe); RAID 5 on Ryzen 9000 only
- Video Outputs: 1× HDMI 2.1 (4K@60 Hz). 1× USB4 Type‑C DisplayPort (4K@60 Hz)
- Rear USB Ports:
- 4× USB 2.0
- 2× USB 5 Gbps Type‑A
- 2× USB 10 Gbps Type‑A
- 1× USB 20 Gbps Type‑C
- 1× USB 40 Gbps USB4 Type‑C
- Front/Internal USB:
- 4× USB 2.0
- 2× USB 5 Gbps Type‑A
- 1× USB 10 Gbps Type‑C
- Networking: Realtek 8126VB 5 GbE LAN; Wi‑Fi 7 (up to 5.8 Gbps tri‑band); Bluetooth 5.4
- Audio: Realtek ALC897 7.1‑channel HD audio
- Internal Headers & I/O:
- 1× ATX_PWR
- 2× CPU_PWR
- 1× 8-pin PCIe_PWR
- 1× CPU_FAN
- 1× Pump/Sys
- 6× SYS Fan
- EZ‑Conn. jRGB. TPM. RGB headers
- LED Feature: 4× EZ Debug LEDs on PCB
- Operating System: Windows 11 (64-bit) support
- Dimensions: 243.84 × 304.8 mm (Standard ATX)
