- Socket: LGA 1851 for Intel Core Ultra Series 2 CPUs
- Chipset: Intel B860; ATX form factor (305 × 244 mm)
- Power: 8+1+2‑phase VRM with 6‑layer mid-loss PCB; 24‑pin ATX + 8‑pin CPU connectors
- Memory: 4× DDR5 DIMM slots. dual‑channel. up to 256 GB. supports OC to 9.066 MT/s
- PCIe: 1× PCIe 5.0 ×16 full-length with EZ‑Latch; 4× PCIe 4.0 ×1 slots
- Storage: 2× M.2 slots – 1x PCIe 5.0 ×4 with Thermal Guard. 1x PCIe 4.0 ×4 + 4× SATA 6 Gb/s

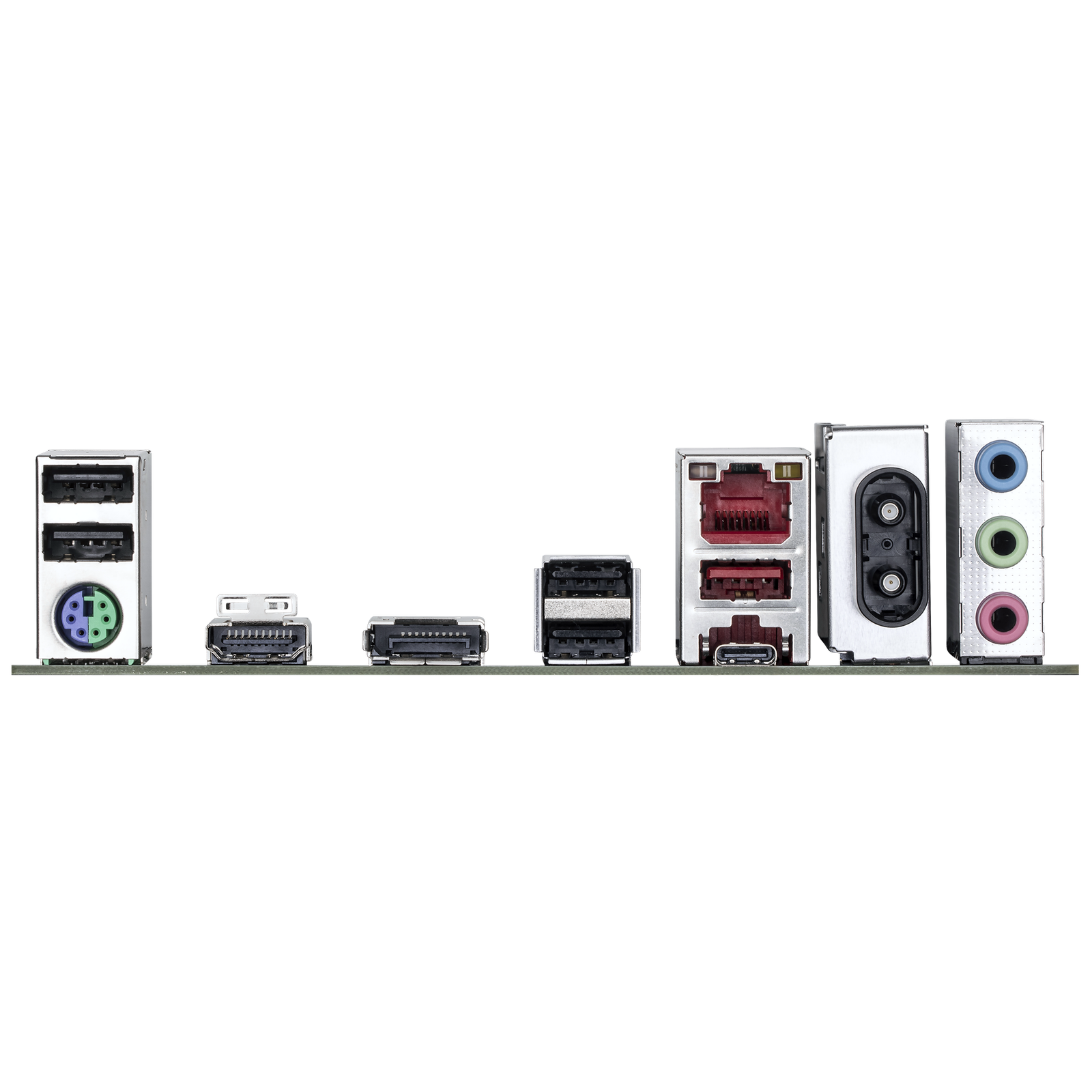

- Rear I/O: 1× HDMI 2.1 & 1× DisplayPort 2.1; 1× USB‑C 3.2 Gen2×2 (20 Gbps). 1× USB‑A 3.2 Gen2. 4× USB 2.0
- Front headers: USB‑C 3.2 Gen1 + 2× USB 3.2 Gen1 + 2× USB 2.0 + 1× SPDIF
- Networking: Intel AX211 Wi‑Fi 6E (2×2. includes EZ‑Plug). Bluetooth 5.3; Realtek 2.5 GbE LAN
- Audio: 8‑channel HD onboard with high‑end capacitors. Audio Noise Guard
- Aesthetics & cooling: RGB Fusion headers (3× ARGB + 1× RGB). chipset & VRM heatsinks. RL‑ILM CPU socket
- DIY features: Q‑Flash Plus. PCIe & M.2 EZ‑Latch. EZ‑Debug Zone LEDs. M.2 Thermal Guard
- Utility features: EV² Bionic Corsa (AI memory OC). AI PerfDrive. Smart Fan 6. friendly BIOS UI
- Warranty & certifications: FCC & CE; includes I/O shield. Wi‑Fi antenna. SATA cables. user manual
